Product Info

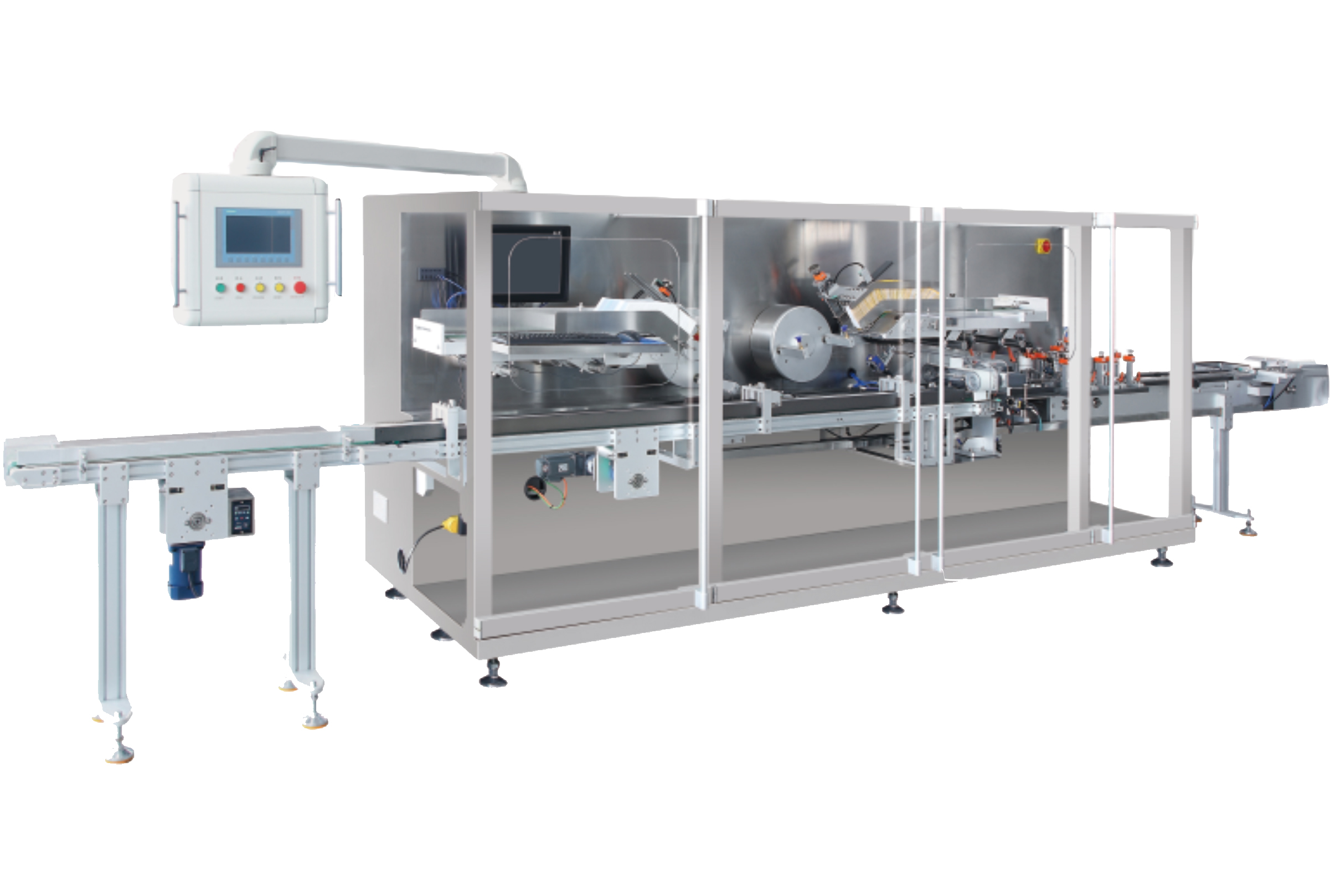

DMT-60 multi-function automatic wrapping machine is an automatic packaging device developed by our company according to the market demand, which uses a pre-press paper to wrap the added instructions and products and spray glue to prevent them from falling off, so as to achieve the purpose of packaging. The machine adopts frequency conversion speed regulation and automatic control technology of mechanical, electrical, optical and pneumatic integration, which makes intermittent motion and continuous motion perfectly matched. It has the functions of automatic paper feeding, automatic instruction, automatic product pushing, automatic wrapping, adhesive sealing, code spraying, detection, scrap removal, etc; It fully meets the requirements of "GMP" standard in the pharmaceutical industry.

Productivity (box/min)	≤60box/min
Max. carton size (mm)	160×80×30
Min. carton size (mm)	90×80×15
Carton quality	250-350/m²
Max. instruction size (length × Wide)	260×180
Min. specification size (length × Wide)	110×100
Instruction quality	55-65/m²
Power Supply	380V 50Hz
Overall dimension (mm)	6100×1200×1800
Weight (kg)	3200
