Product Info

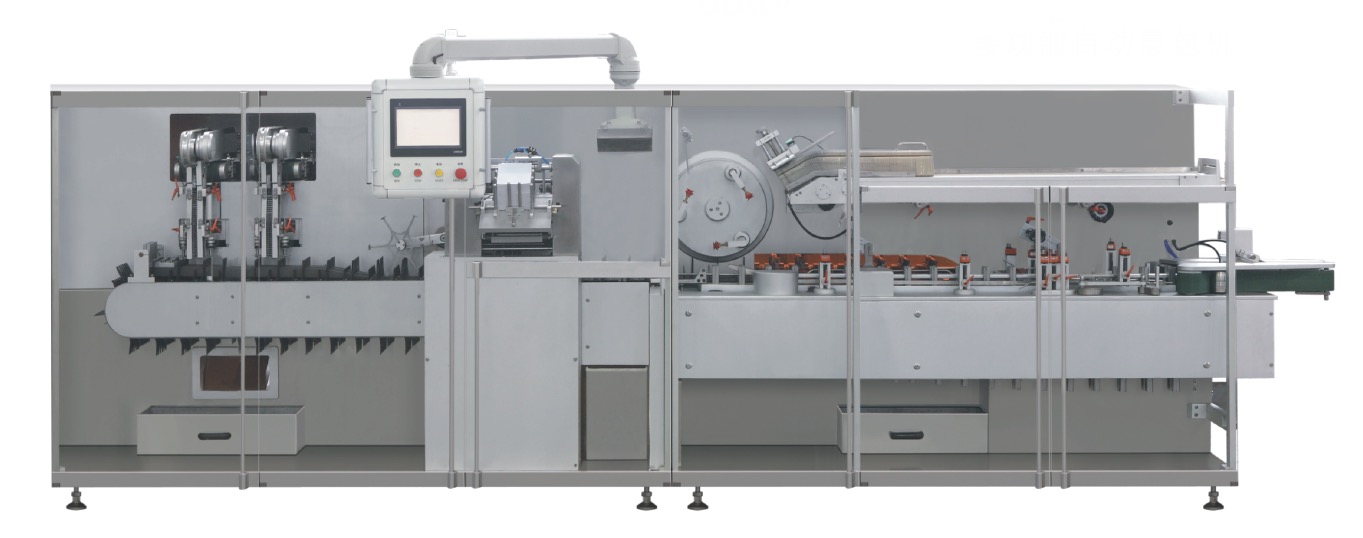

With high efficiency, high performance production capacity, specification folding and transfer, box forming, rear push mechanism related technology to meet the European and American standards; The simple appearance design and the structure of the rear continuous push material make the operation and maintenance more convenient; Three equal double planetary wheel rotating outward opening box with a double preforming device to ensure the box fully stretched forming.

Productivity (box/min)	≤350
Max. carton size (mm)	160×100×50
Min. carton size (mm)	65×25×15
Carton quality	250-350/m²
Max. instruction size (length × Wide)	260×180
Min. specification size (length × Wide)	110×100
Power Supply	380V 50Hz
Overall dimension (mm)	5100×1700×180
Weight (kg)	3500
