Product Info

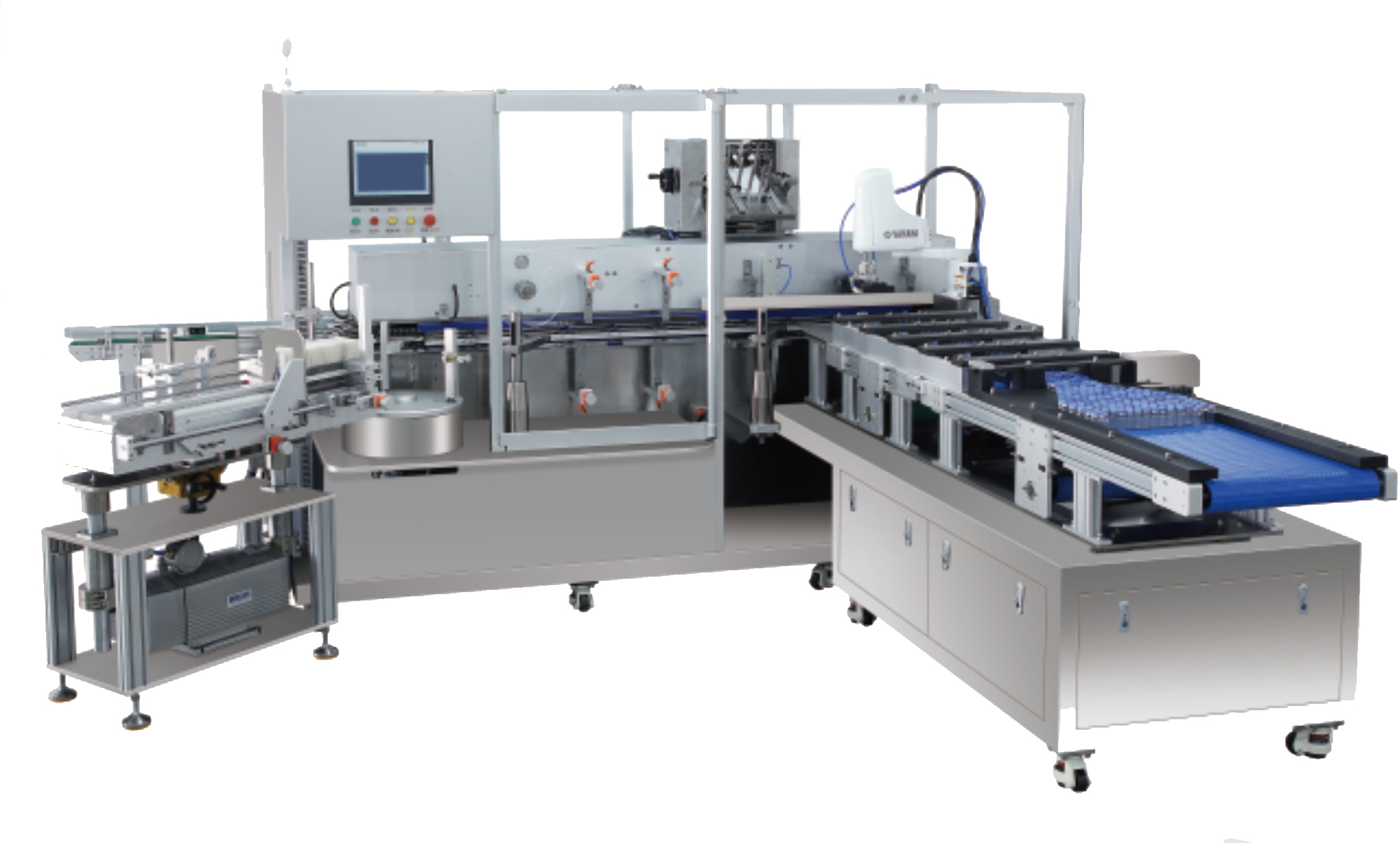

Due to the use of program-controlled intermittent transmission, manipulator feeding and turntable box suction mechanism, it has the characteristics of stable operation and large packaging range, and adopts variable frequency speed regulation and mechanical, electrical, optical Gas integration automatic control technology and innovative design in strict accordance with the "GMP" standard requirements of the pharmaceutical industry. This series of models has many functions, such as automatic feeding, material shortage detection, manual detection, box shortage detection, tongue folding detection, scrap removal, etc.

Productivity (box/min)	≤80box/min
Max. carton size (mm)	150×100×200
Min. carton size (mm)	35×25×45
Carton quality	250-350/m²
Max. instruction size (length × Wide)	260×180
Min. specification size (length × Wide)	110×100
Power Supply	380V 50Hz
Overall dimension (mm)	3850×2000×1900
Weight (kg)	2300
